Industrial Mechanical Seals Engineered for Qatar's Process Sectors
Seals Center manufactures and supplies high-performance mechanical seals for pumps, mixers and rotating equipment across Qatar's oil & gas, marine, water treatment and manufacturing sectors. Stocked and custom-machined at our Doha facility.
A mechanical seal prevents leakage at the point where a rotating shaft passes through a pump, mixer or agitator housing, sealing process fluid against a stationary housing face. In Qatar's oil & gas, desalination, marine and manufacturing plants, seal failure is one of the most common causes of unplanned pump downtime — which is why Seals Center stocks and manufactures a full range of mechanical seal configurations suited to high-temperature crude, produced water, seawater, chemical dosing and general industrial duty.
We supply six core mechanical seal types — multi spring, bellow, cartridge, pump, single spring, and agitator mixer seals — each engineered for a different combination of shaft speed, pressure, fluid chemistry and installation environment. Every seal can be matched to Viton (FKM), EPDM, NBR, PTFE or silicon elastomer compounds and to carbon, silicon carbide or tungsten carbide seal faces, giving plant engineers in Doha, Ras Laffan, Mesaieed, Dukhan and Al Khor a single local source for both standard and cross-referenced replacement seals.

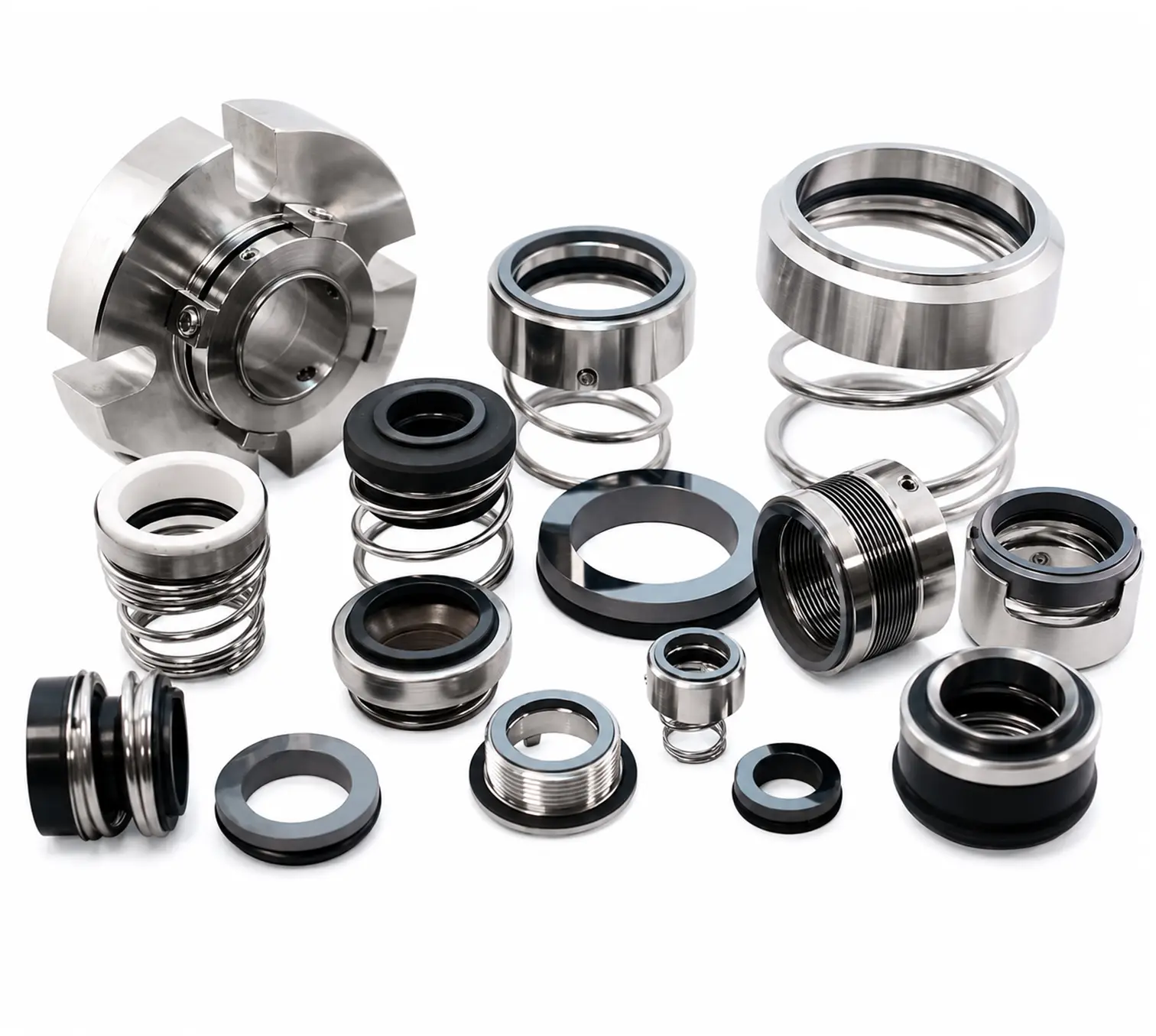

Browse Mechanical Seals by Type
Six configurations covering pumps, mixers and agitators used across Qatar's industrial, marine and process sectors.
Multi Spring Mechanical Seal
Uses multiple small springs arranged around the shaft to apply even, balanced face load. Well suited to higher pressure duty and fluids carrying light solids, since the distributed spring layout resists uneven wear better than a single-spring design.
View details

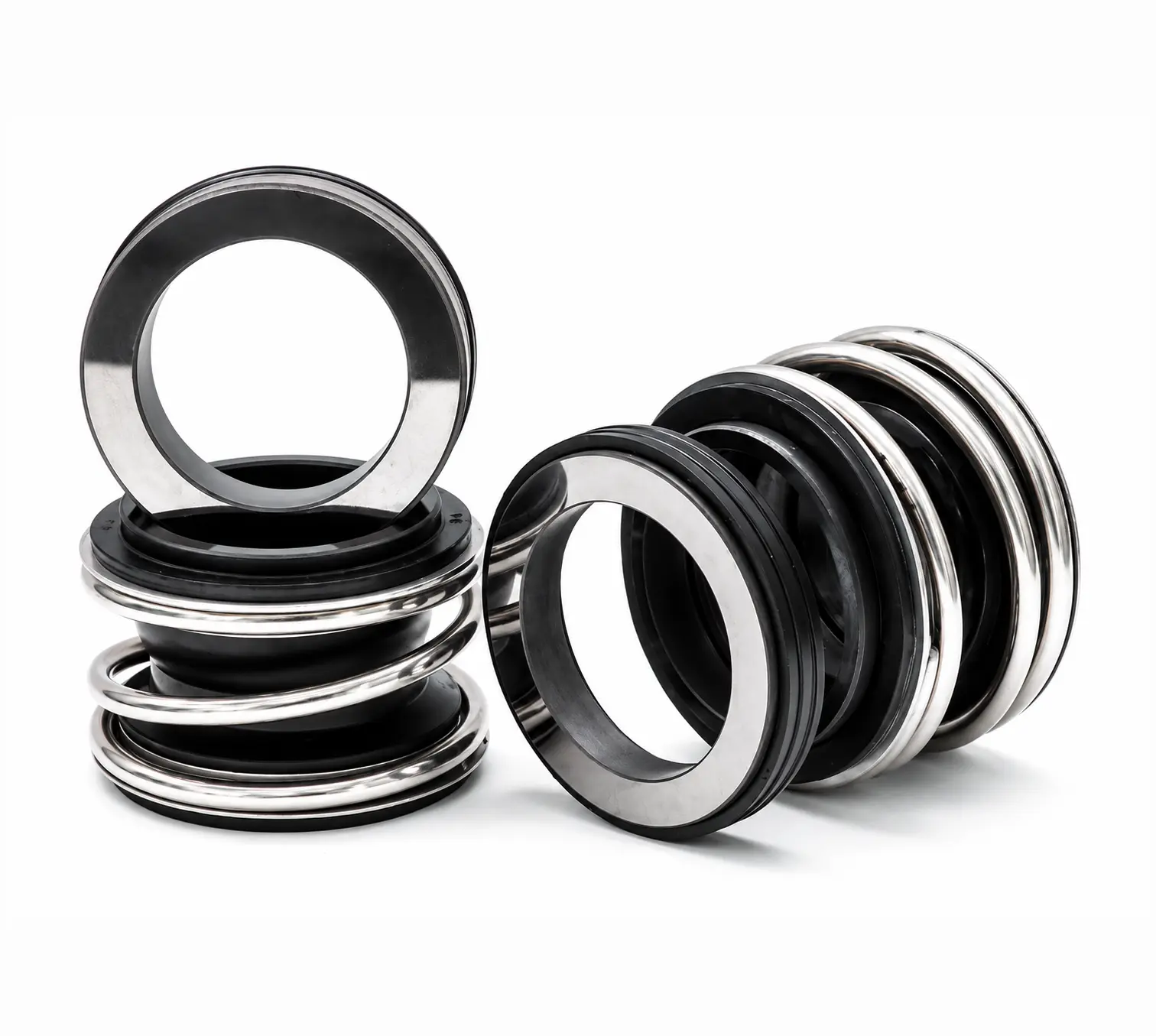

Bellow Mechanical Seal
Replaces springs with a flexible metal or elastomer bellow, removing the need for a dynamic secondary seal. This makes bellow seals a strong choice for hot, viscous or slightly abrasive fluids where spring clogging would otherwise be a risk.
View details

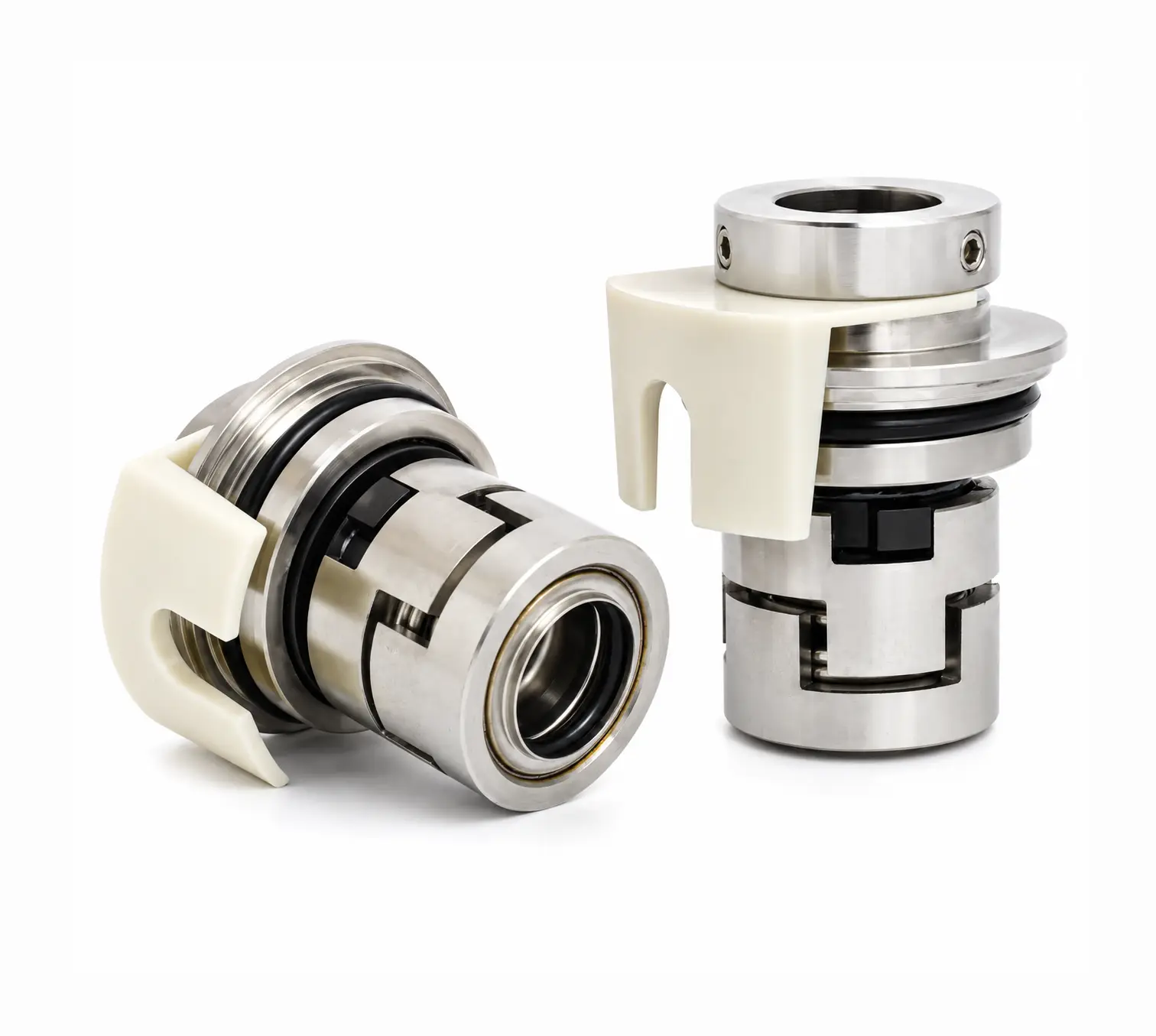

Cartridge Mechanical Seal
A fully pre-assembled unit with its own sleeve, gland and setting device, built for fast, error-free installation. Cartridge seals are the standard specification across most centrifugal pumps in Qatar's oil, gas and water treatment plants.
View details

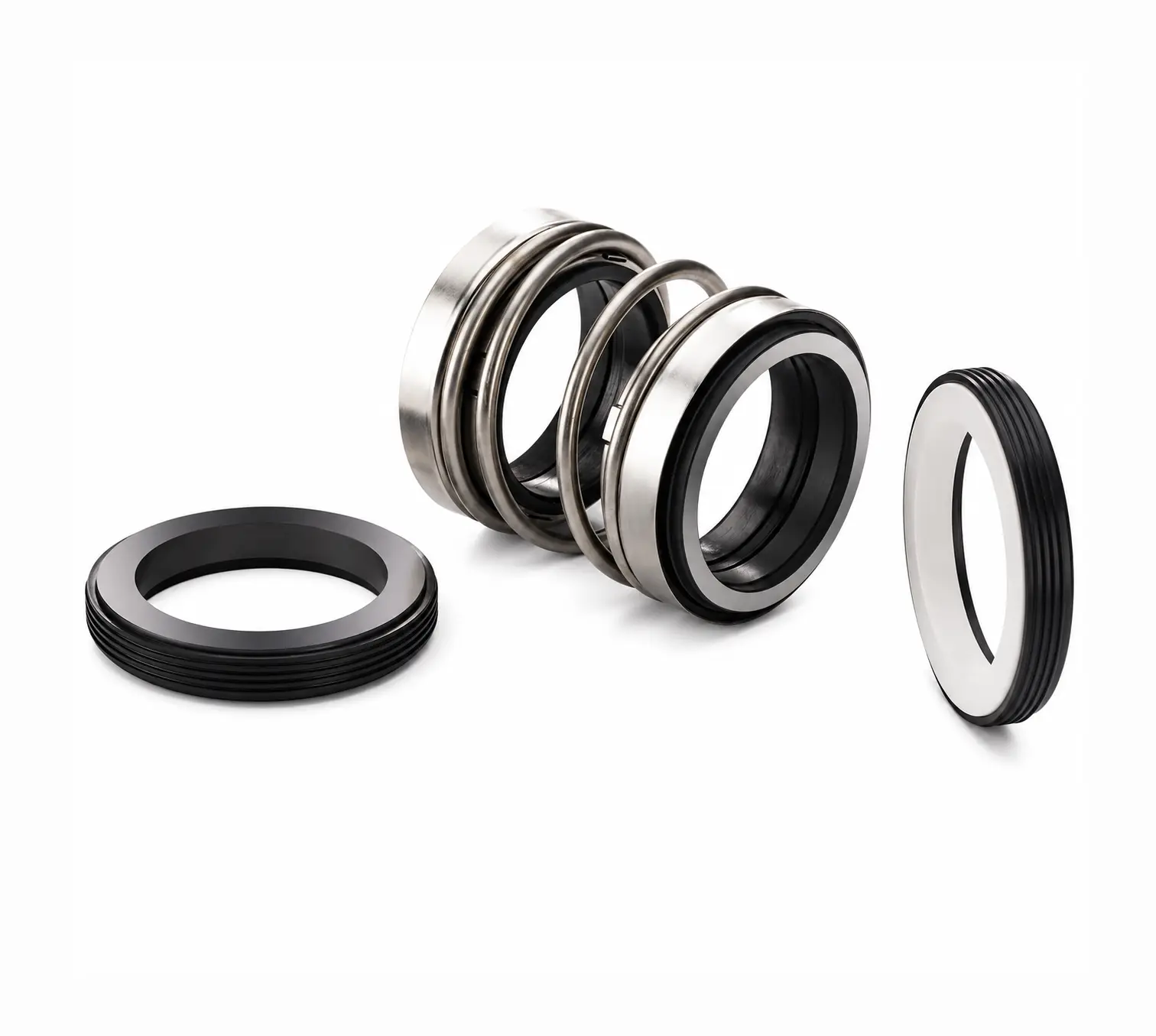

Pump Mechanical Seal
General-purpose mechanical seals sized and configured for centrifugal, gear and submersible pumps across manufacturing, HVAC, marine and construction applications, supplied as direct OEM cross-reference replacements.
View details

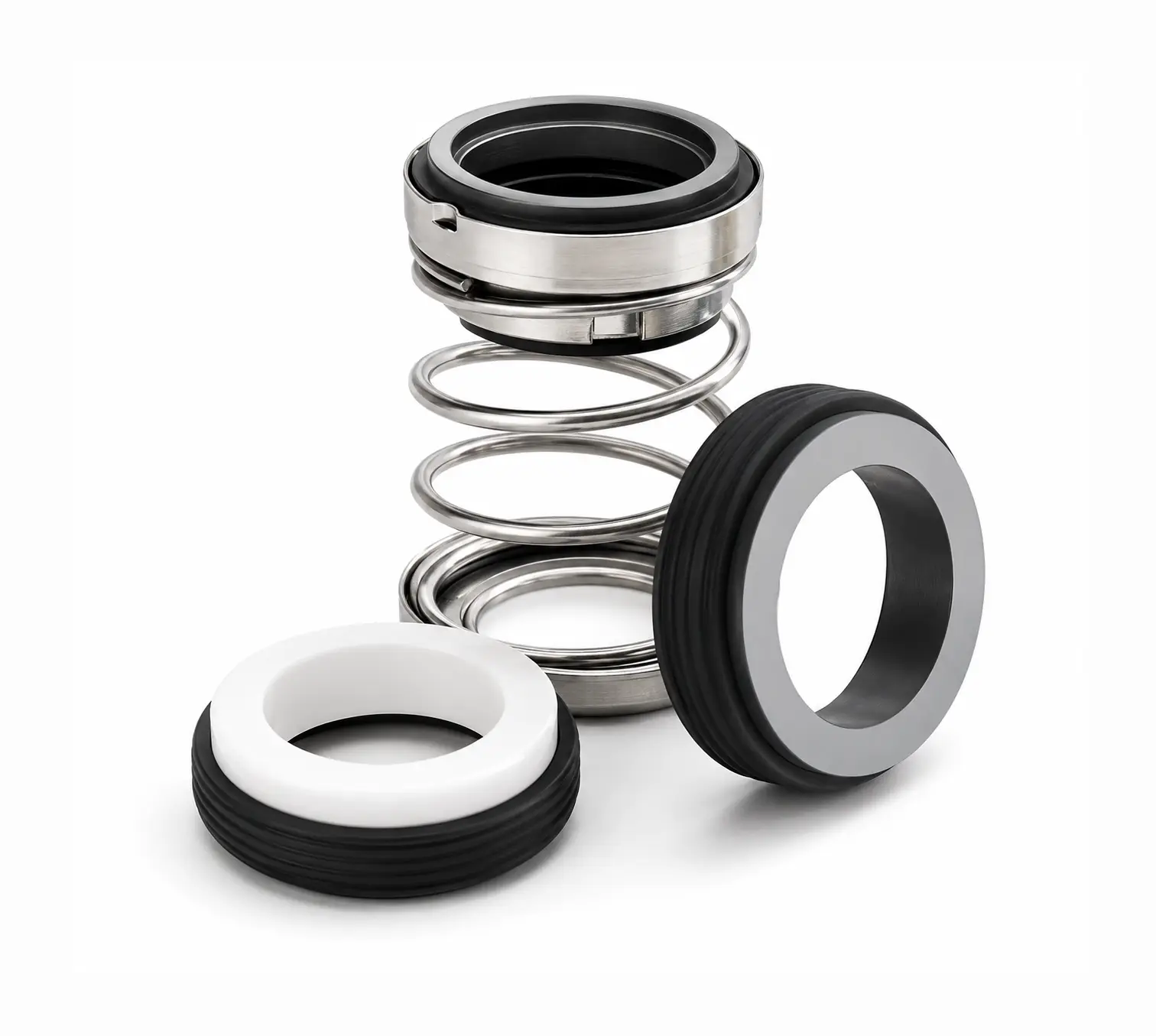

Single Spring Mechanical Seal
A compact, cost-effective design using one large spring to maintain face contact. Ideal for clean, low-to-moderate pressure fluids and smaller shaft diameters where simplicity and quick sourcing matter most.
View details

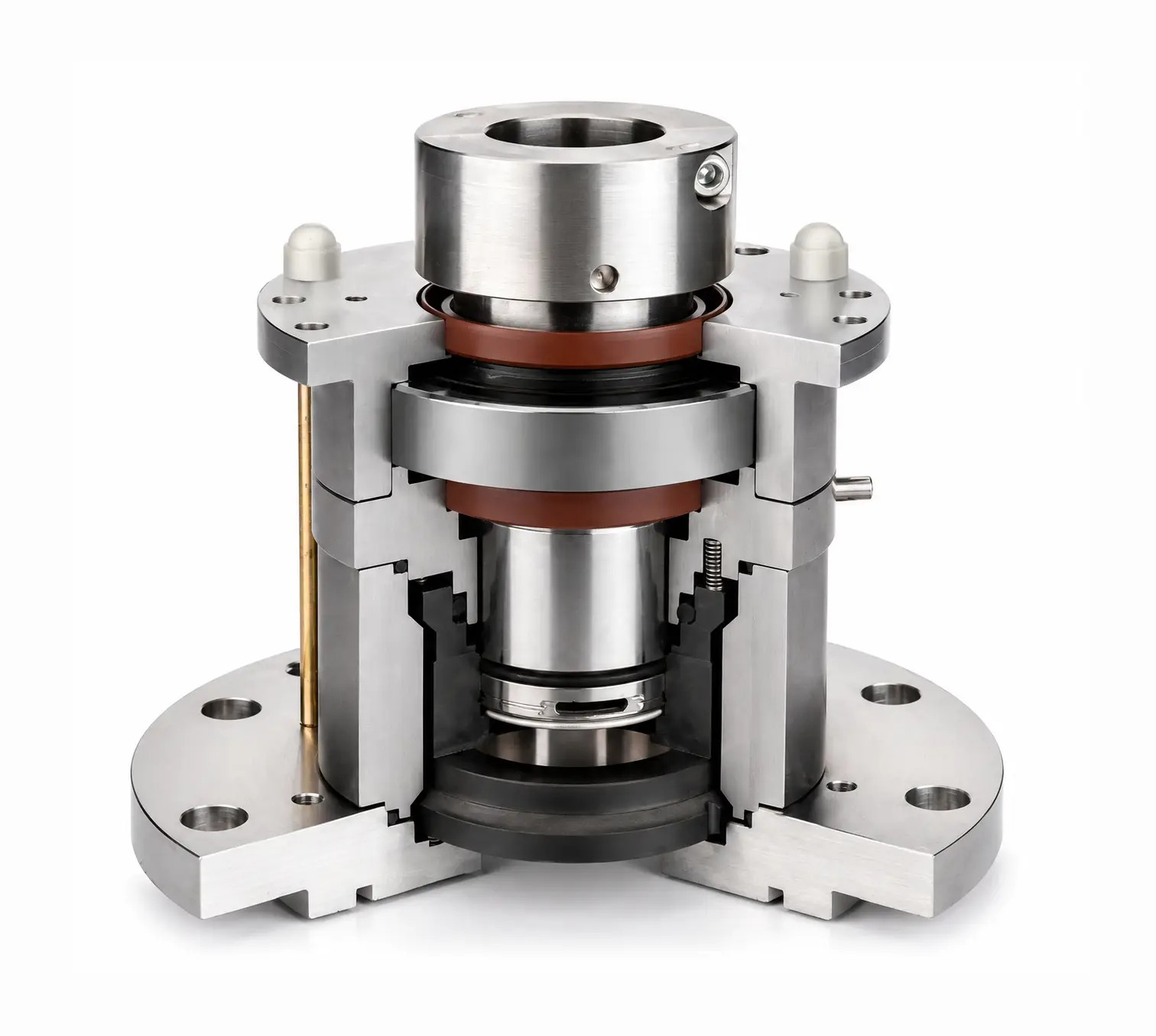

Agitator Mixer Seals
Configured for vertical and horizontal mixing shafts in chemical dosing, water treatment and process tanks, available in single and double seal arrangements for reliable containment under continuous rotation.
View detailsElastomer & Face Material Options
Material selection is key to mechanical seal performance. Our team helps match the right elastomer and face configuration to your fluid temperature and chemical properties.
| Material | Typical Use | Temperature Range | Notes |
|---|---|---|---|
| Viton (FKM) | Hydrocarbons, oils, fuels | -20°C to 200°C | Preferred for oil & gas duty |
| EPDM | Water, steam, mild chemicals | -40°C to 150°C | Common in water treatment |
| NBR | General oils, water | -30°C to 100°C | Cost-effective general duty |
| PTFE | Aggressive chemicals | -70°C to 260°C | Broad chemical resistance |
| Silicon Carbide Face | Abrasive, high-pressure duty | Up to 300°C | High hardness, long wear life |
A Local Manufacturer & Supplier You Can Rely On
Local Stock in Doha
Mechanical seals held at our Industrial Area 11 facility for same-day dispatch.
OEM Cross-Reference
Matching against existing part numbers or worn samples for exact fit.
Multi-Material Range
FKM, EPDM, NBR, PTFE and silicon elastomer options for every fluid type.
Qatar-Wide Delivery
Regular delivery to Ras Laffan, Mesaieed, Dukhan, Al Khor and Al Wakrah.
Where Our Mechanical Seals Are Used
Delivery Coverage
Mechanical Seals Delivered Across Qatar
From our Doha facility in Industrial Area 11, we deliver mechanical seals directly to job sites, workshops and plants in:
Mechanical Seals — Frequently Asked Questions
Most centrifugal pumps in Qatar's oil, gas and process plants use cartridge mechanical seals because they arrive pre-assembled, install correctly the first time, and reduce maintenance downtime. We supply cartridge seals in Viton (FKM), EPDM and PTFE to match crude, produced water and chemical duty.
Yes — we supply agitator and mixer mechanical seals for vertical and horizontal shafts used in water treatment, chemical dosing and industrial mixing tanks, in both single and double seal configurations.
A single spring seal uses one large spring and suits clean, low-solid fluids at moderate speed. A multi spring seal spreads the load across several smaller springs, giving more even face pressure and better tolerance for higher pressure or slightly abrasive duty.
Yes. We manufacture and cross-reference mechanical seals against existing OEM part numbers or a worn sample, supplying cartridge, bellow, single spring and multi spring replacements matched to original dimensions and materials.
We hold mechanical seal stock at our Industrial Area 11 facility and typically deliver same-day within Doha, with next-day delivery to Ras Laffan, Mesaieed, Dukhan, Al Khor and Al Wakrah for standard sizes.
