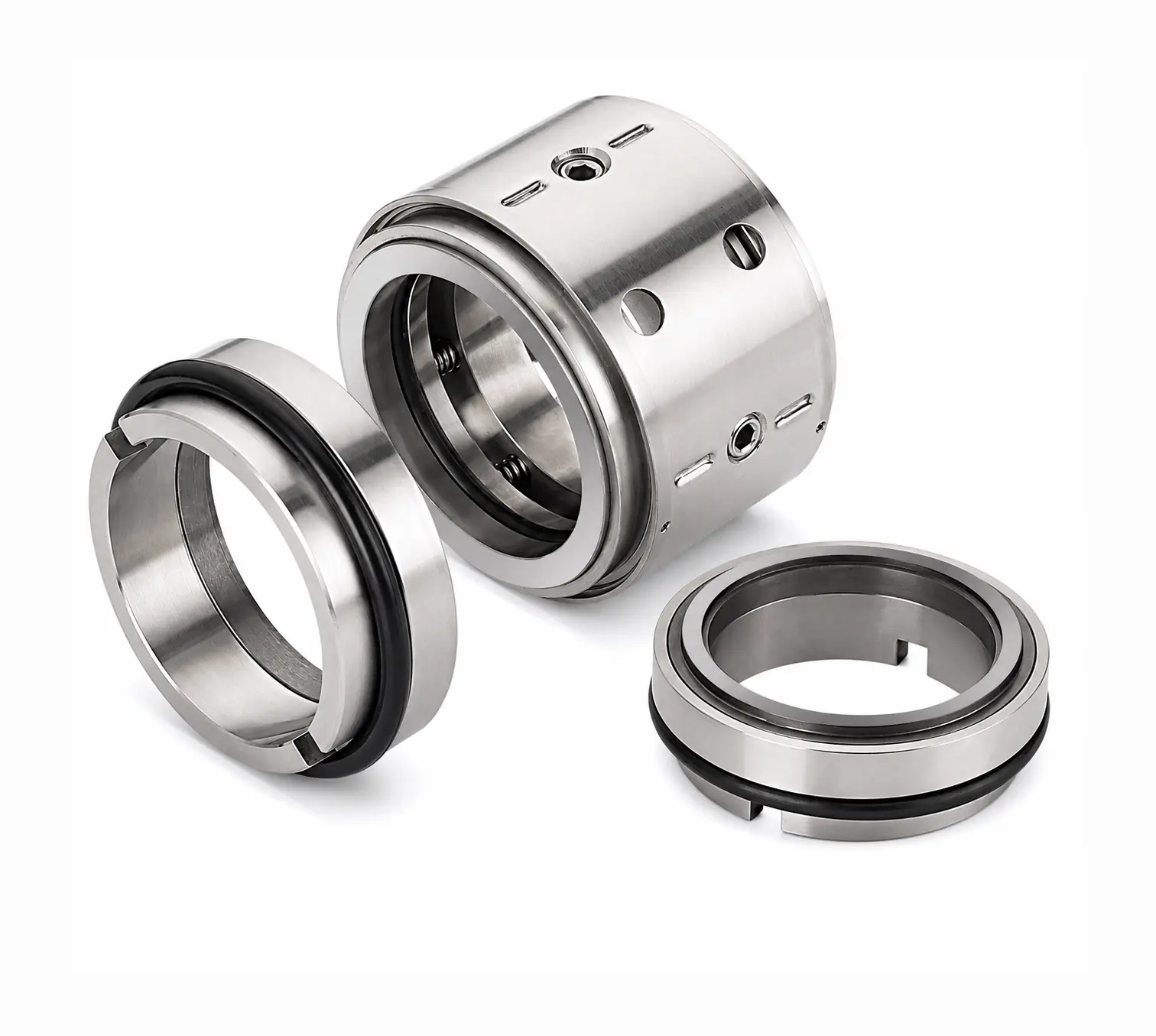

Multi Spring Mechanical Seal Manufacturer & Supplier in Qatar
High-performance multi-spring seals engineered for pumps, agitators, and rotating equipment. Distributes closing force evenly around the shaft, reducing hang-up risk in demanding slurry, viscous, and mildly contaminated process environments.
- Distributed load via multiple small springs prevents uneven wear
- Continues to seal reliably even if a single spring is fouled
- Same-day dispatch to Ras Laffan, Mesaieed, and Dukhan
Even Loading, Superior Reliability
Seals Center is a leading manufacturer and supplier of multi spring mechanical seals in Doha, Qatar, engineered for pumps, agitators, and rotating equipment operating under demanding process conditions. Unlike single spring designs, a multi spring mechanical seal distributes closing force evenly around the shaft through several smaller springs, which reduces the risk of hang-up on rough or worn shaft surfaces and keeps performing even if one spring becomes fouled by debris.
This makes the design well suited to slurry, viscous, and mildly contaminated fluids commonly encountered in Qatar's oil & gas, water treatment, and industrial processing plants. We stock multi spring mechanical seals in a wide range of face materials and sizes at our Industrial Area 11 facility in Doha, with same-day dispatch available to Ras Laffan, Mesaieed, Dukhan, and Al Khor.
Specifications & Materials
| Specification | Detail |
|---|---|
| Seal Faces | Carbon-graphite, Silicon Carbide (SiC), Tungsten Carbide (TC), Ceramic (Al2O3) |
| Secondary Seals | NBR (Nitrile), Viton (FKM), EPDM, PTFE |
| Spring & Metal Parts | SS304, SS316, Hastelloy C (on request) |
| Shaft Size Range | 10 mm – 100 mm (custom sizes on request) |
| Temperature Range | -20°C to +200°C, media dependent |
| Pressure Rating | Up to 16 bar (higher on balanced designs) |
| Max Shaft Speed | Up to 20 m/s |
| Rotation | Clockwise or counter-clockwise, uni-directional |
Where Multi Spring Seals Are Used
Desalination & WWT
Centrifugal and slurry pumps in water treatment and desalination plants across Qatar.
Oil & Gas Processing
Process pumps in hydrocarbon facilities located in Ras Laffan and Mesaieed industrial zones.
Agitators & Mixers
Rotating equipment shafts handling abrasive, viscous, or slurry-based fluids.
Chemical Dosing
Chemical transfer and high-precision dosing pump systems.
Marine Auxiliary Pumps
Reliable operations in auxiliary marine cooling, ballast, and transfer systems.
HVAC Chilled Water
Heavy-duty circulation pump seals for district cooling and commercial building HVAC.
Frequently Asked Questions
A multi spring mechanical seal is used to prevent fluid leakage along rotating shafts in pumps, agitators, and mixers, particularly where the shaft surface is uneven, worn, or where the fluid carries fine particulate. The multiple-spring design keeps consistent closing force on the seal faces even under these conditions.
A single spring mechanical seal uses one large central spring, which is simple and robust but can be more sensitive to shaft surface condition. A multi spring seal uses several smaller springs positioned around the shaft, giving more even load distribution and better tolerance to minor shaft irregularities and contamination.
Yes. The multi spring design is commonly chosen for slurry, viscous, and mildly contaminated fluids because the seal continues to function reliably even if debris affects one or two of the springs, unlike a single spring seal that relies on one spring path.
Seals Center stocks multi spring mechanical seals from 10 mm to 100 mm shaft diameter at our Doha facility, with custom sizing and material combinations available on request for pumps and rotating equipment across Qatar.
